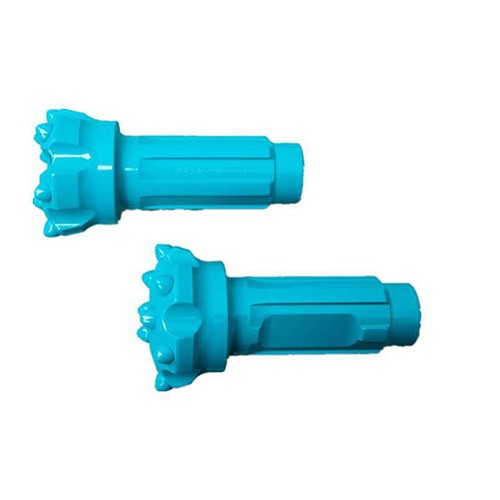

CIR90-95mm DTH bit for Granite Rock (Low Air Pressure DTH Bit )

CIR90-95mm DTH bit for Granite Rock (Low Air Pressure DTH Bit )

Code No.: CIR90-95
Diameter: 95mm
Carbide : 6*14mm, 3*13mm , 2*12mm
Rock type and hardness :Granites (hardness class 3 to 5)
Cemented Carbide grade :YK05/KD10H
Bit face:Concave, Convex , Flat
Bit shape:Semi-ballistic in gauge,ballistic in front
Shank Type: CIR

Shank types: CIR90, CIR100, CIR110, etc.

Suitable rock formation and condition :Quartztites (class 5 to 6) ,Granites (hardness class 3 to 5)

DTH hammer bits hole diameter: 3", 4", 5", 6", 8"(85mm-305mm).

Advantages

1.Improved steel grade for better fatigue properties

2.Five basic front designs

3.Designs for all rock types
