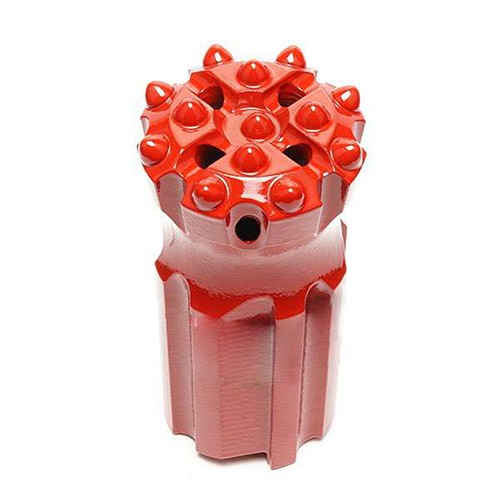

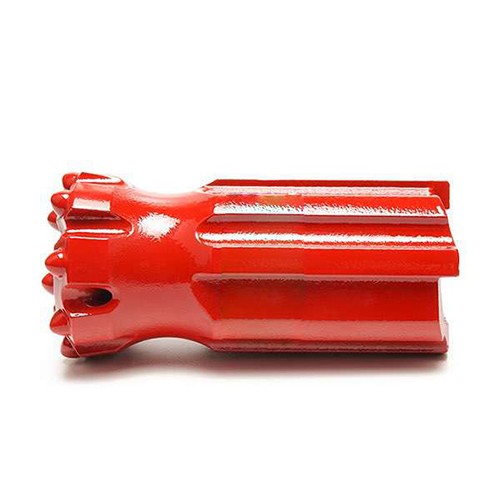

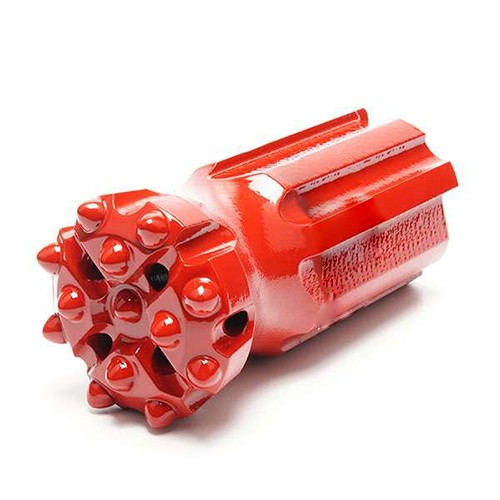

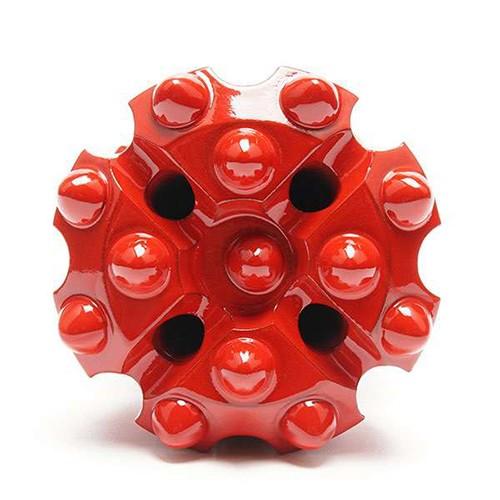

Q13-89-T38-160-RC Threaded Button Bit

T38 Threaded Button Bits from rock drilling tools manufacturer Bloom, which is the most important size for benching and long-hole drilling underground.

We will choose to use tungsten carbide of T6，featuring good wear-resistance and toughness.

This type of carbide has already been proved to be the best in world and been competing with those big names worldwide for quite a long time.

Meanwhile，we will choose to use superior steel suitable for hot insertion technology, by which the drilling bits body will hold the carbide buttons so tightly that reduce the risk of buttons’ dropping out of the holes.

In order to better resist the abrasiveness of rock, spherical shape will be a good option for the carbide if high speed is not a necessity.

Diameter 64mm 76mm, 89mm,

Skirt body: retrac, and normal,

Face type: flat, uniface, drop center

Carbide shape: Dome, ballistic, semi-ballistic

Used in bench drilling, underground long hole drilling to match extension MF rod, MM Drifting drill rod heavy duty top hammer.

13 Semi-Ballistic carbide inserts T38 threaded drill bits with drop center design, 76mm diameter and retrac skirt body for bench drilling and underground long hole drilling.
